Fuelmaster
The Fuelmaster is a high flow automatic diesel nozzle designed to meet the higher capacity fueling requirements at high volume truck stops and terminal operations. This nozzles has the traditional rear hold open clip that is preferred by many customers.
More InfoMCD & MCDS
The MCD is a high flow automatic diesel nozzle. Ideal for the high volume truck stops and for fast refueling at fleet terminal operations.
More InfoBig Mouth
The Big Mouth is a lightweight automatic diesel nozzle that meets the fueling needs of many truck stops and other operations at an economical price. Equipped with the traditional rear hold open clip.
More InfoFueler 100™
The Fueler-100 has been in continuous production for over 20 years and the current model reflects the many changes and innovations that have been made over this time span.
More InfoOur Products: Automatic Diesel Nozzles
Select a product on the left for more information.

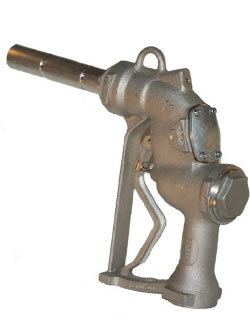

FUELER-100™
HEAVY DUTY HIGH FLOW AUTOMATIC NOZZLE
Designed for High Volume Fuel Transfer. Typical uses include High Volume Truck Fleet & Bus Terminals, Fuel oil Delivery and Industrial Operations.
The Fueler-100 has been in continuous production for over 20 years and the current model reflects the many changes and innovations that have been made over this time span.
M Carder Performance Advantages
- High Strength aluminum body casting for greater durability
- Roto-matic latch pin for smoother auto shut off
- Pure Teflon stem packing eliminates leaks
- Dual poppets for easy high pressure operation
- Grooved spout holds nozzle in the tank
- Nylon spout lock nut does not gall makes it easy to change the spout
| Nozzle Specifications | Construction Specifications | |
Inlet: 1-1/2" NPT or BSPP Spout: Aluminum 1 -3/8" Seals: Viton * Poppet Disc: Viton Packing: Pure Teflon Weight: 6.9 lbs Length: 13.5" Height : 10.5" Working pressure: 50 PSI max |
Body: High Strength Aluminum Handguard: Integrated w/body Hold Open Clip:Two speed Lever: Cast High Strength Aluminum Body Cap: Cast Aluminum Vac. Cap : Zinc Main Stem: Stainless Steel |
|
| * Cold Climate Seals Available | Shipping and packing | |
 |
Nozzles are individually boxed and and packed 7 per carton. Weight: 6.9 lbs each 49 lbs per carton. Bulk packing available : Nozzles are sealed in plastic and packed 100 per master carton.
|
|
 Download a spec sheet. |
||
