5-Star Automatic Gas Nozzle

The new lightweight automatic gasoline nozzle is ideal for full/self service. "One hand" open clip with patented "Kicker" feature provides positive clip release with automatic shut off. Mico-Touch valve offers precise - to the penny flow control.

More Info

5-Star S

5-Star "S" Automatic Gas Nozzle

This new lightweight Automatic gasoline nozzle is ideal for prepaid locations. Has a pressure activated secondary shut-off that prevents fuel flow until system is pressurized. Micro-Touch valve precise - to the penny flow control.

More Info

Micro-Flo 1000

Micro-Flo 1000 Automatic Gas Nozzle

This Automatic Gasoline Nozzle is a traditional styled nozzle with M. Carder refinements. Our Micro-touch valve for precise flow control. Rotomatic latch pin for positive automatic shut off.

More Info

Farm & Consumer

Farm & Consumer Automatic Gasoline Nozzles

This F&C Automatic nozzle is designed for use with small 12 volt and AC utility pumps, as well as larger Farm & Consumer pumps. The hook is the toughest available - will always maintain its shape.

More Info

Our Products: Automatic Gasoline Nozzles

Select a product on the left for more information.

5-Star "S" Automatic Gasoline Nozzle

MAde in the USA
Made In The USA

UL Listed
UL listed for use with gas 10% ethanol blend and diesel.

PEI Member

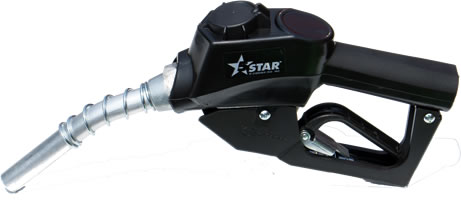

5-Star Automatic Gasoline Nozzle

The 5-Star "S" Automatic Gasoline Nozzle which has a pressure activated secondary shut off that prevents the fuel flow until the pumping system is operating and will automatically close when the pump is turned off. The 5-Star "S" is ideal for prepay locations.

Also see the 5-Star Automatic Gasoline Nozzle. The 5-Star is a lightweight automatic gasoline nozzle that is ideal for full and self service locations. On hand hold open clip with patented "kicker" which provides positive clip release with automatic shut off.

M Carder Performance Advantages

  • Solid metal spout adapter - added strength
  • Check valve seat - machined aluminum, check valves seal tightly
  • Roto-Matic® latch pin - (patented) smoother shut off
  • Unique binder screws - to secure handguard firmly
  • Micro-Touch® valve assembly - (patented) precise flow control (stops on 1/2 cent!)
  • Pure teflon packing - eliminates stem leaks
Nozzle Specifications   Construction Specifications

Inlet: 3/4" NPT or BSPP

Spout: Aluminum 13/16" or 15/16"

Seals: Viton*

Poppet Disc: Viton*

Packing: Pure Teflon

Weight: 2.5 lbs

Length: 13.5"

Height : 9"


Body: High Strength Aluminum

Handguard: Super tough nylon

Vac. Cap: Nylon

Lever: Steel w/super tough nylon cover

Scuff Guard: Smartguard

Body: Zinc

* Cold Climate Seals Available   Shipping and packing
micro flo-1000

Nozzles are individually boxed and and packed 15 per carton.

Weight: 2.5 lbs each 56 lbs. per carton.


Bulk packing available : Nozzles are sealed in plastic and packed 250 per master carton.


Download a spec sheet for the Mircro Flo-1000Download a spec sheet.

The 5-Star "S" nozzle is rebuildable.
